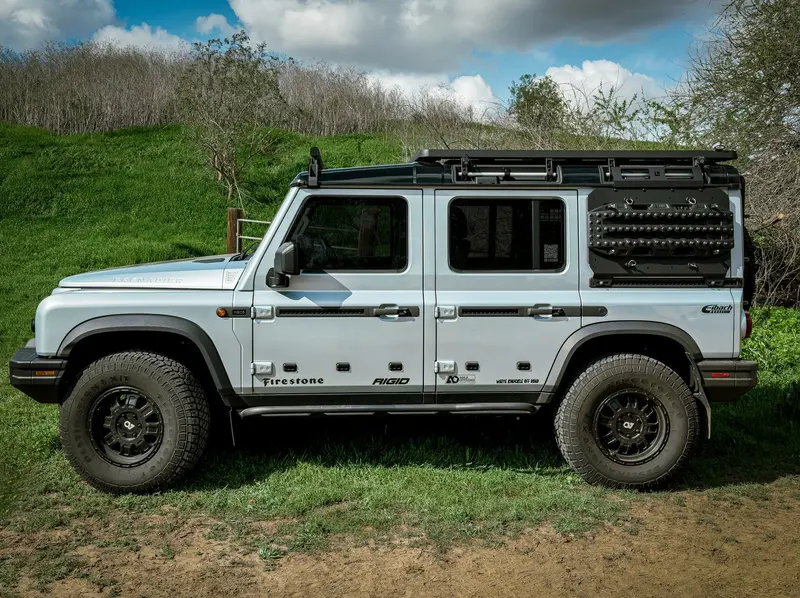

INEOS Grenadier Front Load Bar Assembly

Description

The Leitner front load bar kit is a great option if you occasionally carry long loads and works in conjunction with our ¾ roof rack or load bars. The front load bar can be removed with minimal effort (6 screws)

We have designed the load bar to minimize wind noise by developing a custom wind deflector to keep noise down even with the safari windows open.

Key Features:

• Billet aluminum: Mounting brackets machined from 6061 T6 aluminum for a flex-free performance.
• Load Bar: 60” long, extruded 2” X 2” aluminum with 4 mounting t-slots.
• Rubber Load Bar pad: Soft rubber pad prevents load shifting and noise.
• Installation: Simple and can be completed in approximately 30 minutes. All necessary hardware is included.
• Quiet: custom wind deflector nearly eliminates noise.
• Compatibility: Fits all Grenadier models with or without ¾ rack and load bars

Note:

• Works in conjunction with the ¾ rack
• Works in conjunction with the load bars

Specifications:

• Weight: 12 lbs. Light
• Material: 6061 T6 Aluminum
• Fasteners: Grade 10.9 black Zi-Ni coated
• Finish: Leitner dual-stage powder coat
• Manufacturing: Designed, engineered, in the USA
